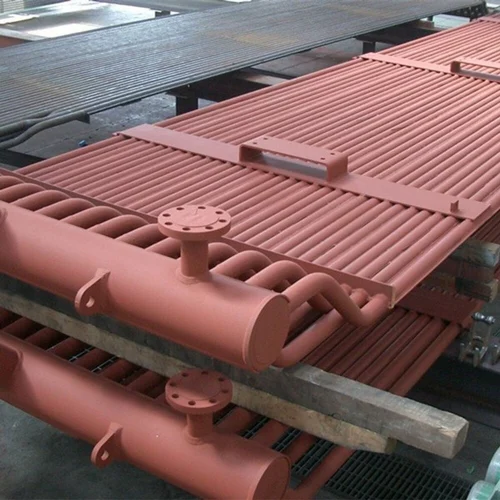

Boiler water wall panels are vital components in industrial boilers, designed to contain and transfer the heat generated by fuel combustion to circulating water, producing steam for various applications. These panels consist of steel tubes arranged strategically to optimize heat transfer efficiency, acting as a barrier between high-temperature gases and circulating water. Two primary types of membrane water wall boilers exist: Tangent Tube and Vertical Tube designs. Tangent Tube boilers feature water tubes connected to external drums in a tangent pattern, while Vertical Tube boilers arrange tubes vertically within the main shell, offering compactness and superior heat transfer.

Constructed with materials like carbon steel, alloy steel, or stainless steel, these panels require regular maintenance to sustain efficiency and longevity. Their design and construction significantly impact boiler performance, ensuring optimal heat transfer and energy efficiency. Boiler water wall panels find extensive applications in power plants and industrial settings, serving as critical elements for steam generation and powering turbines. Proper design, material selection, and maintenance are essential to ensure their reliability, efficiency, and longevity, contributing to overall boiler performance with IBR Approvals and operational efficiency.

Specifications

• MOC: As Per IBR
• CAPACITY: As Per Customer Requirements
